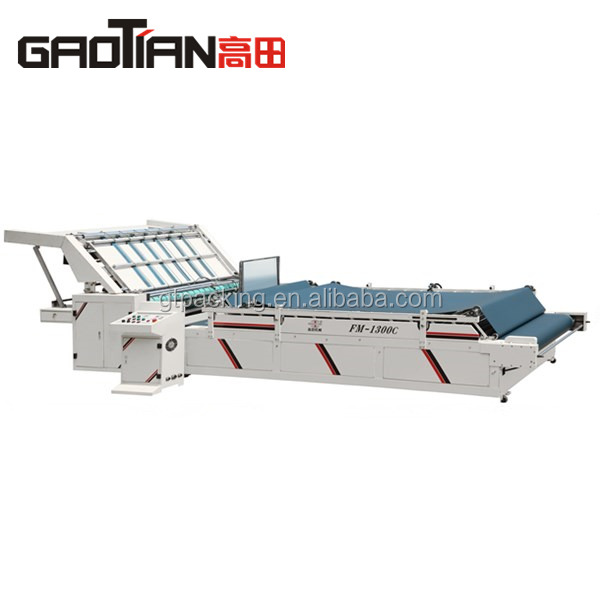

machinery & Semi Automatic Hardware GAOTIAN Flute Laminator Machine

1 Set
MOQ
machinery & Semi Automatic Hardware GAOTIAN Flute Laminator Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Laminating Machine
Condition: New
Application: Machinery & Hardware
Packaging Type: Metal
Packaging Material: Paper
Automatic Grade: Semi-automatic
Driven Type: Electric
Voltage: 380v
Power: 8KW
Model Number: FM
Dimension(L*W*H): 7100*2000*1250
Weight: 5.5T, 5.5 T
After-sales Service Provided: Engineers available to service machinery overseas
Certificación: CE, CE
Product: Flute laminator machine
fastest Speed: 3000pic/hour
Max sheet size: 1450*1100 mm
Min sheet size: 350*450 mm
Overall Dimention: 7100*2000*1250
Top paper thickness: 150gsm to 800gsm
Bottom paper thickness: 300gsm to 8000gsm
Needed power: 8KW 380V
Información básica
Certificación: CE, CE
Model Number: FM
Pago y Envío Términos
Packaging Details: Steel package suitable for long-distance transport shipping and The machine can be stacked up save the cotainer room.
Supply Ability: 10 Set/Sets per Month
Descripción de producto
Features:
Flute laminator machine FM model suitable for lamination of corrugated cardboard to paperboard, and paperboard to paperboard. Automatic feeding of bottom sheet and normal front feeding of top sheet With flexible front gauge positioning to control the laminating precision. Stepless timing, novelty and beauty, easy operation and high laminating precision. New equipment for producing the high quality cardboard, makes the cardboard more striking, nice and high intensity. Used widely for packing food, wine bottle, electric appliance and light industry products.
.
Technical parameter:
Model
FM-1100
FM-1300
FM-1450
Max sheet size(mm)
1100*1100
1300*1100
1450*1100
Min sheet size(mm)
300*300
350*450
450*450
Speed(m/min)
0~90
0~90
0~90
Voltage(v)
380
380
380
Frequency(Hz)
50
50
50
Total power(kw)
7
7.5
8
Measurement(mm)
7100*1550*1250
7100*1850*1250
7100*2000*1250
Weight(ton)
3.7
4.9
5.5
Working principle:
The sheet first to be transmitted manually to front gauge positioning for orientation.
Photo electricity switch starts up the vertical pump valve after receiving the signal and
makes the bottom sheet to be absorbed to the belt.
Electromagnetic clutch makes the bottom sheet feed automatically from the feeder.
The bottom sheet will be oriented at front positioning together with the sheet after its
gluing, then to open the positioning by the thrust which generated from the roller to the
bottom sheet.
The top sheet and bottom sheet will be conglutinated through the effect between lamination
roller and press roller, then to be transmitted to the press part.
